Model: 2 meters high
Manual unlocking when lowering
plus shipping and handling
Nicht mehr Lieferbar
Columns Double-S design,
Manufacturing process 8 times folded column this improves not only the strength of the lift but also the stability.
Also improves the lifting and lowering of the lifting carriage.
Stronger and more durable than conventional pillars.

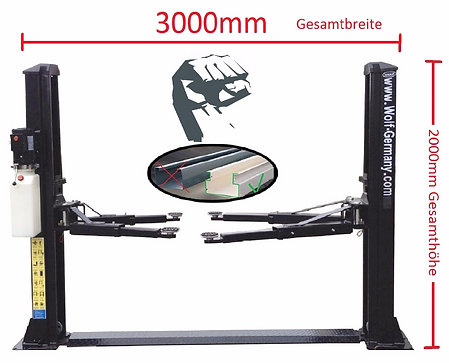

A 2-post lift with an 8-fold double-S design
For cars, sports cars, SUVs & small vans with a short wheelbase up to 3200kg.
Lifting platform total height 2000 mm total width of 3000mm
with manual unlocking on both sides when lowering.
The stage is durable, high-quality powder-coated, insensitive and almost maintenance-free.
The support arms are automatically locked when they are lifted. If the platform is completely lowered, this lock is released automatically and enables the car doors to be opened wide.
Automatic mechanical crash safety lock integrated on both sides.
The powerful motor and two powerful maintenance-free hydraulic cylinders make lifting and lowering easier.
Synchronization wire ropes mounted without load ensure the synchronization of the support arms.
Hydraulic unit mounted on the front saves space.

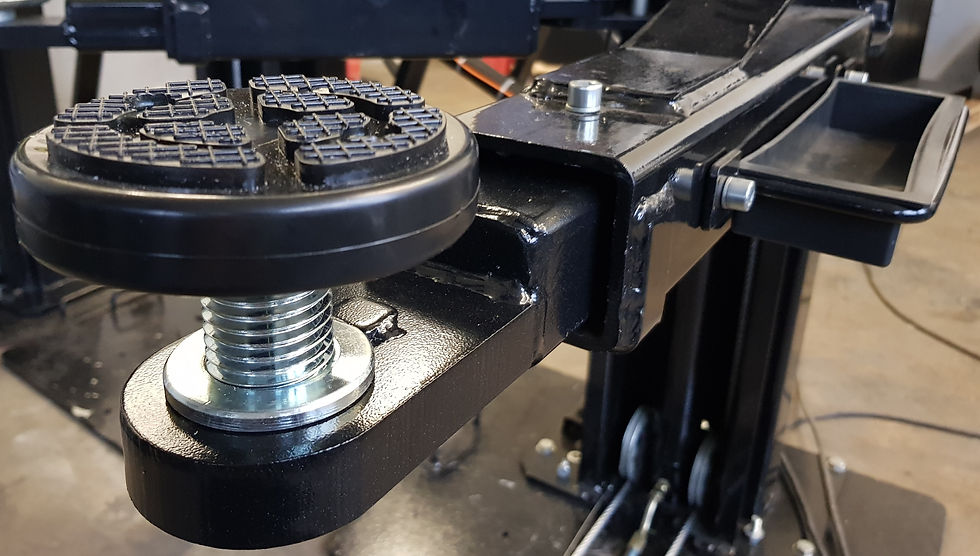

2x door stop rubbers, pillar protection covers , foot deflectors with storage compartment , drive-over plate, particularly suitable for deeper vehicles, turntable min100mm with rubber pad round off the equipment of the lift.
The lift can also be used as a second parking facility (parking lift).
2x2-part short (front) can be pulled out once
2x2-part, long (rear), can be pulled out once
Lift strength: 3200 kg
Lifting height: 1500 mm (turntable only)
Lifting height: approx1550mm (turned out with turntable)
Maximum wheelbase: 30 00mm
Min. lower height: 100 mm
Drive-over plate height: 40 mm
Total height: 2000 mm
Total width: 3000mm including hydraulic pump
Passage width: 2100mm
Drive-through width: with larger vehicles it may be that they have to be pushed into the lifting platform because of the total width of 3000mm
Lifting time: approx. 50 sec
Lowering time: approx. 35 sec (adjustable)
Noise level: 70 dB
Weight: 530 kg
Power: 2.2 kW
Electricity operation: (240V / 50Hz 1phase) or (380V50Hz 3Phase) can be selected when ordering.
Scope of delivery:
• 2-post lift including motor unit
• Powerful motor with hydraulic unit
• 2x door stop rubbers
• 2x foot deflectors with storage compartment
• 4x turntable with rubber pad
• Drive-over plate
• Column protection covers
• German operating instructions + assembly instructions (video)
• Test book for regular UVV safety checks with EC declaration of conformity.
• The lift is supplied in black.
• Easy assembly as 80% pre-assembled.
• New goods in their original packaging.
(Hydraulic oil and heavy-duty ground anchor not included in the price, can be ordered as an option)
See video how it works or
What is manual unlocking when lowering
Information on the soil requirements foundation statics:
Expansion of min length 4000 mm width 3000 mm depth 350 mm.
Concrete of strength class C20 / 25 according to DIN1045: 2001-D7 double reinforced
The depth of the foundation must be at least for a 2 post lift with identical load capacity
200 mm .
For your own safety, don't let your competitors convince you that one concrete strength
From 100-150mm is sufficient! From a static point of view, it does not matter from which provider you get the 2 post lift
Always the same soil requirements!
